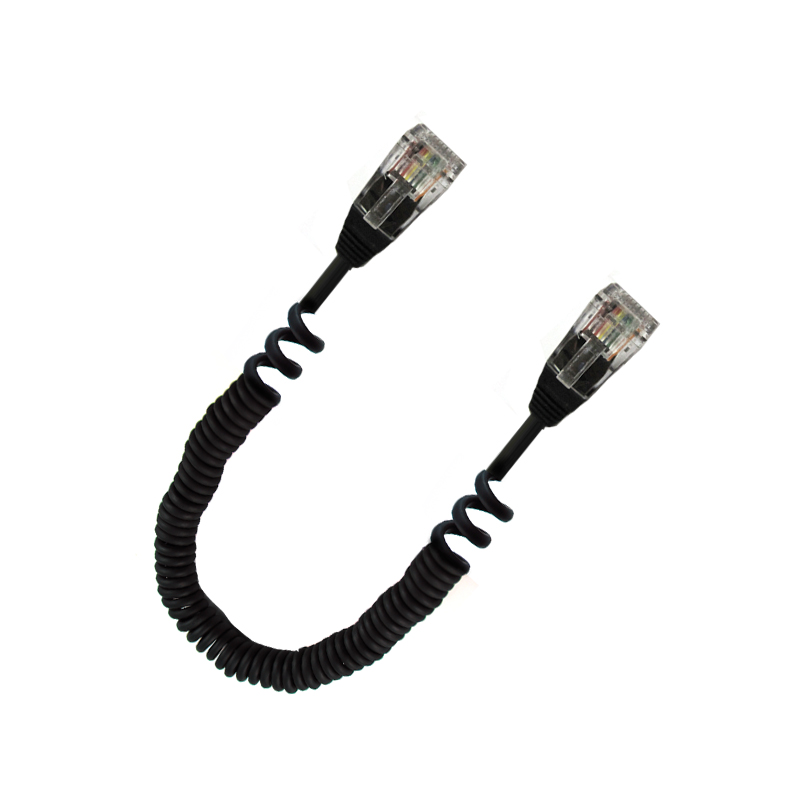

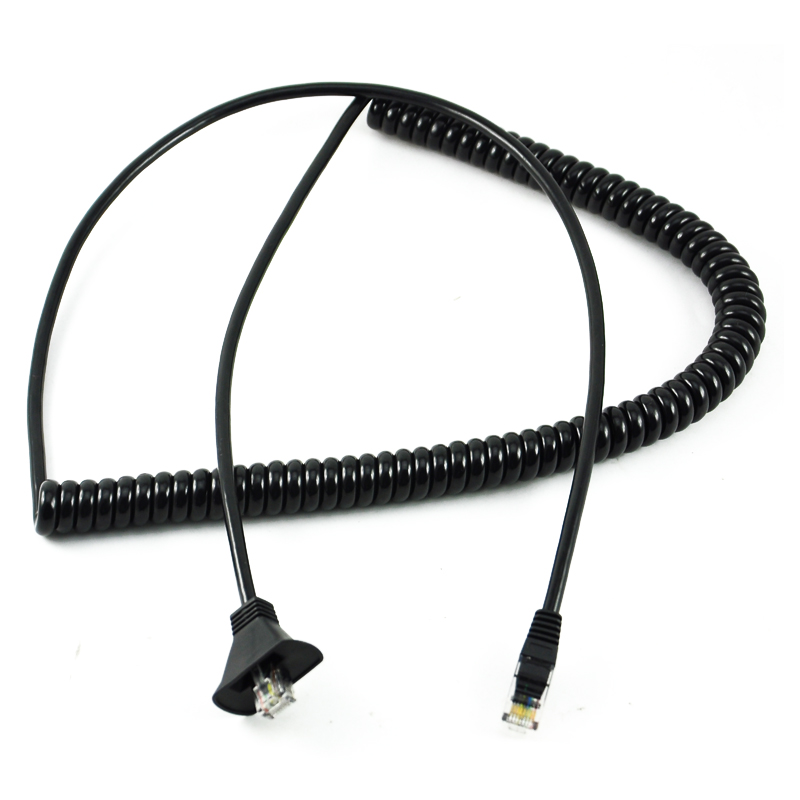

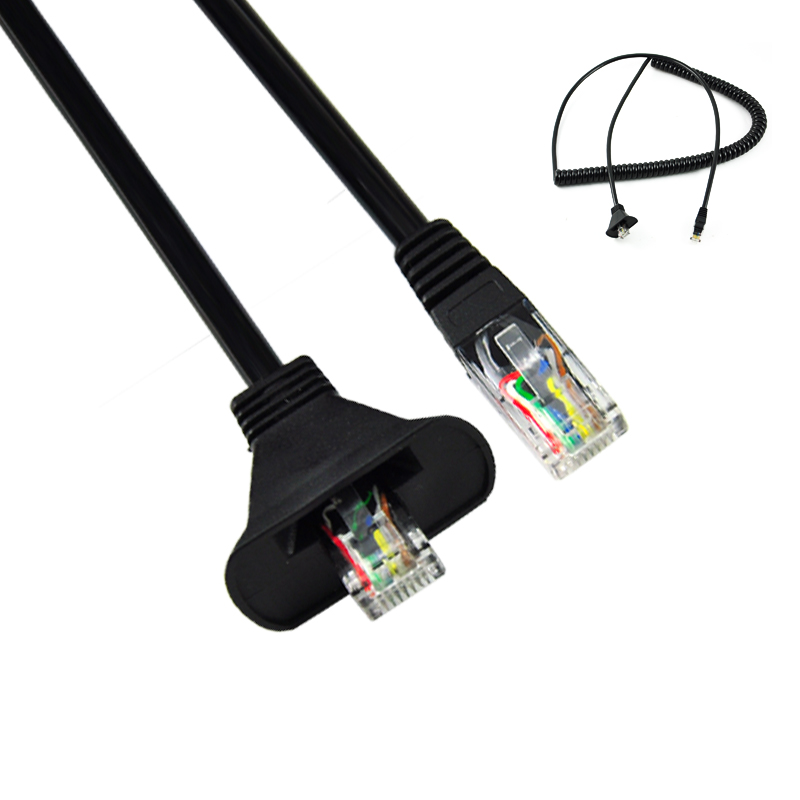

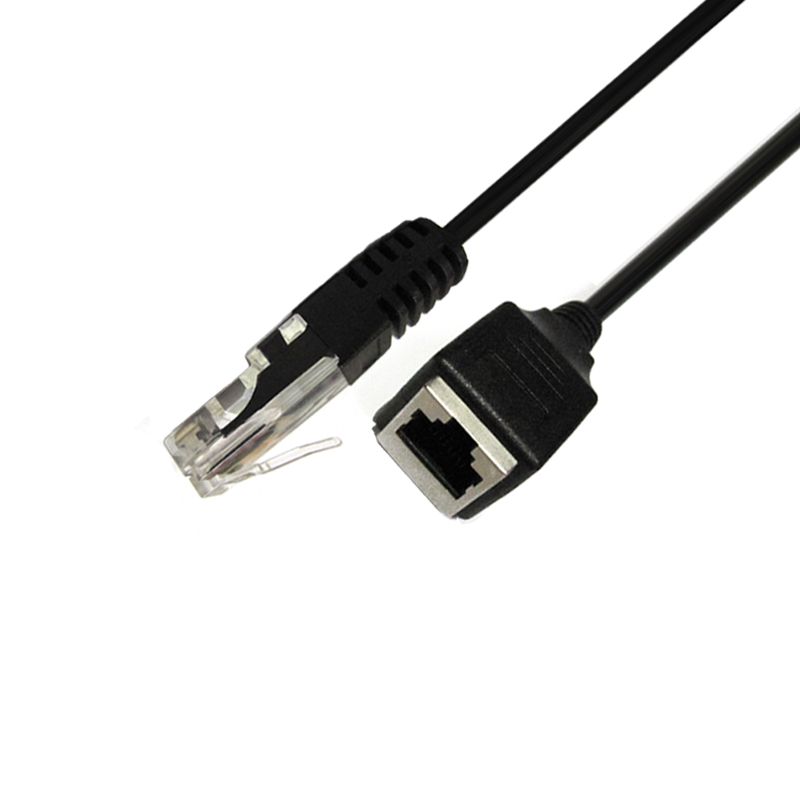

Network RJ 45 CAT5e CAT5 UTP Patch Cord lan cable
| Frequency MHz | RL ≥dB | Attenuation ≤dB/100m | NEXT ≥dB/100m | PHASE DELAY≤ ns | ELFEXT ≥dB/100m | PS NEXT ≥dB/100m | PS ELFEXT ≥dB/100m |
| 1 | 20.0 | 2.03 | 74.3 | 570 | 67.8 | 72.3 | 64.8 |
| 4 | 23.0 | 3.78 | 65.3 | 552 | 55.7 | 63.3 | 52.8 |
| 8 | 24.5 | 5.32 | 60.8 | 546.73 | 49.7 | 58.8 | 46.7 |
| 10 | 25.0 | 5.95 | 59.3 | 545.38 | 47.8 | 57.3 | 44.8 |
| 16 | 25.0 | 7.55 | 56.2 | 543 | 43.8 | 54.2 | 40.7 |
| 20 | 25.0 | 8.47 | 54.8 | 542.05 | 41.8 | 52.8 | 38.8 |
| 25 | 24.3 | 9.51 | 53.3 | 541.2 | 39.8 | 51.3 | 36.8 |
| 31.25 | 23.6 | 10.67 | 51.9 | 540.44 | 37.9 | 49.9 | 34.9 |
| 62.5 | 21.5 | 15.38 | 47.7 | 538.55 | 31.8 | 45.4 | 28.8 |
| 100 | 20.1 | 19.8 | 44.3 | 537.6 | 27.8 | 42.3 | 24.8 |
| 200 | 18.0 | 28.98 | 39.8 | 536.54 | 21.8 | 37.8 | 18.8 |
| 250 | 17.3 | 32.85 | 38.3 | 536.27 | 19.8 | 36.3 | 16.8 |
Specification
* Pairs: 4Pairs
* Working Temperature: -20°C ~ + 75°C
* Shielding: UTP/FTP/SFTP
* Conductor: 23AWG Bare copper or copper clad aluminum (24awg Optional)
* Insulation: HDPE
* Rip rope: optional
* Jacket: PVC or LSZH
* Application: Indoor or Outdoor
* Reference Standard: ANSI/TIA/EIA-568B,ISO/IEC11801
* Package: 300 or 305M/roll as per customer request
