Up to 450/750V PVC Insulation electric wire

1.Application：

Fixed wiring,civil power,mobile equipment

2.Construction

Conductor type：

IEC 60228-2004 class 1 or class 2.

Nominal Cross-section area: 0.5～400mm2

We can according to our client’s need and also provide technical data

3.Characteristic

Rated Voltage：

450/750V More-than 1.5mm2 single core conductor

300/500V Less-than 1.5mm2 single core and multicore conductor

300/300VLess-than 1.5mm2 multicore conductor

Test Voltage：

AC 1500V/5Min for 0.5～1mm2 multicore conductor

AC 2000V/5Min for 0.5～1mm2 single core and multicore conductor

AC 2500V/5Min Other.

Color of Insulation：

Red、Yellow、Green、Light blue、White、Black、Grey、Brown、Orange、Violet、Yellow/Green.

Notes

1、 Ambient temperature for insulation shall not be lower than 0℃.

2、 At nominal conditions, the conductor’s operating temperature is -15℃ to +70℃

3、 Fire resistant wire conform to IEC 60331-2009, Flame resistant wire conform to IEC 60332-2004.

4.Standard

IEC 60227-2007

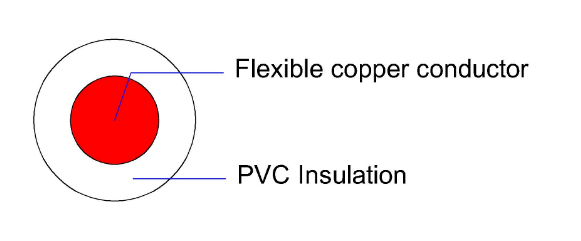

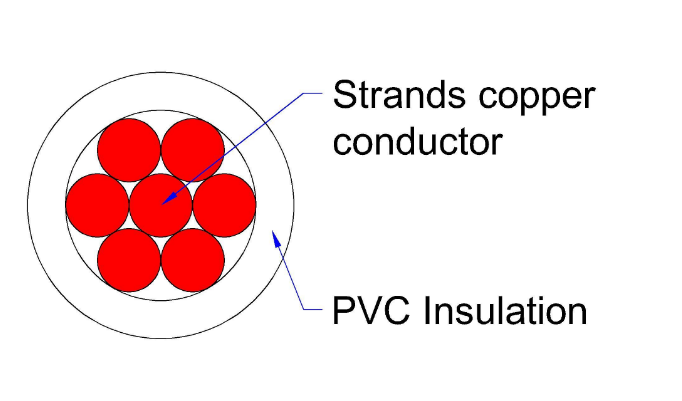

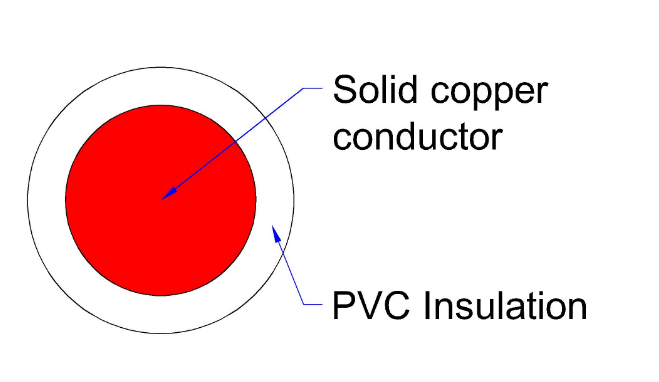

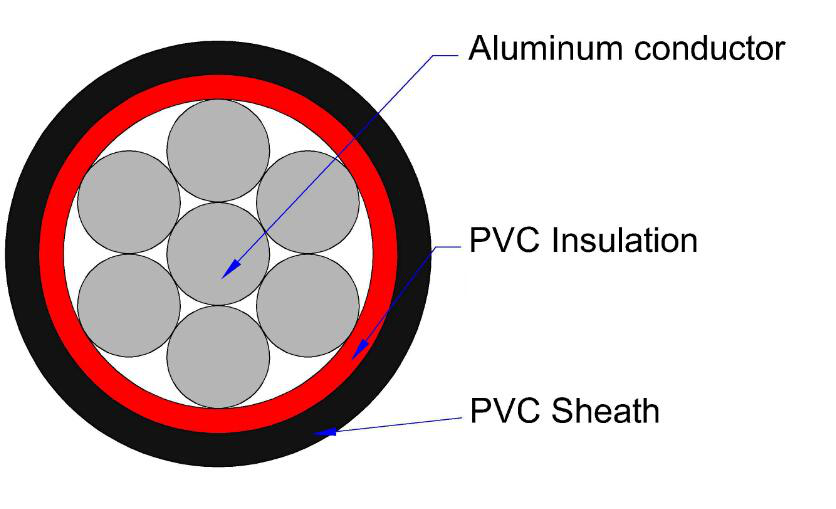

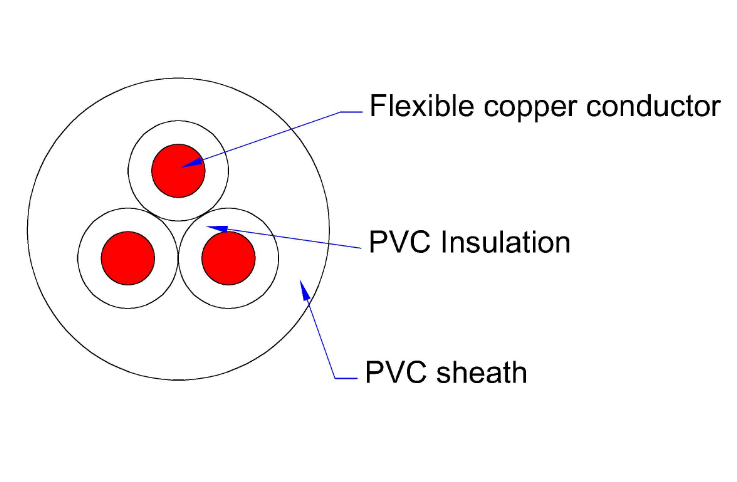

5.Cable Drawing
