CU/PVC/SWA/PVC, AL/PVC/SWA/PVC 0.6/1kV

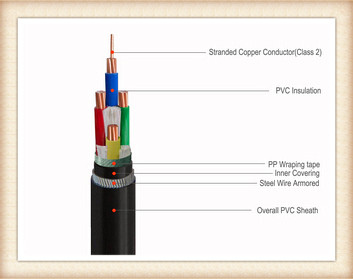

Constructions
Conductor: Plain circular stranded copper/aluminum conductor, conform to IEC 60228 class 2
Insulation: PVC/A
Inner Covering: PVC
Armoring: Steel Wire
Sheath: PVC type ST2 to IEC 60502, black
Note: Insulation color as per standards or at request
Applications
Suitable for use in power distribution lines or fixed installations with rated voltage up to 0.6/1 kV. Apply to shafts, water and soil, able to bear the larger positive pressure.
Standards
International: IEC 60502, IEC 60228
China: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage: 0.6 / 1 kV
Max. Conductor Temp.: normal (70℃), short circuit no more than 5 s (160℃ when section-area below 300mm2, 140℃ when section-area above 300mm2)
Min. Ambient Temp.: 0℃, after installation and only when cable is in a fixed position
Min. Bending Radius: 15 x cable O.D for single-core armored cables
12 x cable O.D for multi-core armored cables
Certificates
CE, RoHS, CCC, KEMA and more others at request
Model No. | Construction | Applications |
VV32 | Copper Conductor, PVC Insulated, Fine Steel Wire Armored,PVC Sheathed Power Cable | Apply to shafts,water and soil,able to bear the larger positive pressure. |
VLV32 | Al.Conductor, PVC Insulated, Fine Steel Wire Armored,PVC Sheathed Power Cable |
