Descriptions

Single-core non-sheathed cables with flexible conductor for internal wiring for a conductor of 90℃

Code designation: 60227 IEC 08 (International), RV-90 300/500V(China)

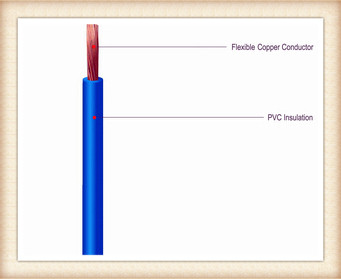

Constructions

① Conductor: Flexible copper conductor, comform to IEC 60228 class 5

② Insulation: PVC/E

Applications

Used in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.

Standards

International: IEC 60227

China: GB/T 5023-2008

Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage:300/500 V

Max. Conductor Temp. in normal use:90℃

Min. Bending Radius: 6 x cable O.D

Certificates

CE, RoHS, CCC, KEMA and more others at request
