Descriptions

Single-core non-sheathed cables with rigid conductor for general purposes

Code designation: 60227 IEC 01 (International), BV 450/750V(China), BVR 450/750V(China), H07V-U(VDE)

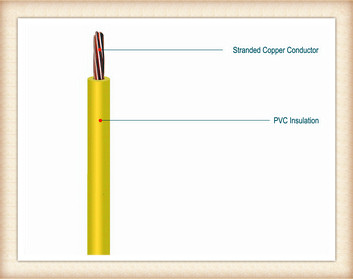

Constructions

① Conductor: Plain circular solid copper conductor, comform to IEC 60228 class 1

③ Conductor: Plain circular stranded copper conductor, comform to IEC 60228 class 2

② Insulation: PVC/C

Applications

In dry rooms, apparatus switch and distribution boards, for fixed installation in conduits, over and under plaster and on insulated supports over plaster. Direct laying in plaster is not permitted.

Standards

International: IEC 60227

China: GB/T 5023-2008

Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage:450/750 V

Max. Conductor Temp. in normal use: 70℃

Min. Bending Radius: 4 x cable O.D

Certificates

CE, RoHS, CCC, KEMA and more others at request
