·Description

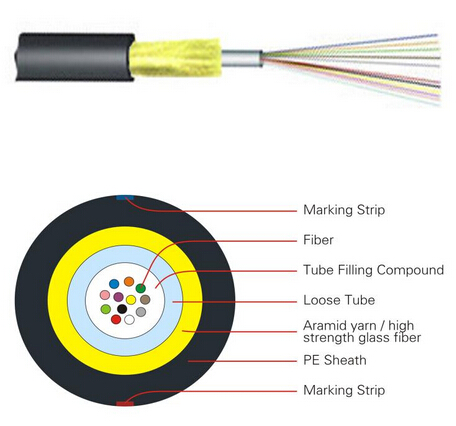

The fibers,250μm, either of single-mode or multimode type, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A layer of aramid yarn or high strength glass is applied around the cable core as additional strength member. Then, the cable is completed with a black or color HDPE sheath.
·Characteristics
· Non-mental design can prevent the cable from radio interference and magnetic wave interference
· Specially designed compact structure is good at preventing loose tubes from shrinking
· Aramid yarn ensures good performance of tensile strength
· Loose tube filling compound ensure good moisture resistance performance
· Good flexibility
· High dense fiber packed, small diameter and light weight; it's the better option for blowing
installation process
·Application
Adopted to backbone network, access network and fiber to the home.
·Optical Characteristics
| G.652 | G.655 | 50/125μm | 62.5/125μm | |
Attenuation (+20℃) | @850nm |
|
| ≤3.0 dB/km | ≤3.0 dB/km |
@1300nm |
|
| ≤1.0 dB/km | ≤1.0 dB/km | |
@1310nm | ≤0.36 dB/km | ≤0.40 dB/km |
|
| |
@1550nm | ≤0.22 dB/km | ≤0.23dB/km |
|
| |
Bandwidth (Class A) | @850nm |
|
| ≥500 MHz·km | ≥200 MHz·km |
@1300nm |
|
| ≥1000 MHz·km | ≥600 MHz·km | |
Numerical Aperture |
|
| 0.200±0.015NA | 0.275±0.015NA | |
Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm |
|
|
Cable Type | Fiber Count | Cable Diameter mm | Cable Weight kg/km | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100mm | Bending Radius Static mm |
JET 2~12 | 2~12 | 4.2±0.3 | 12 | 60/150 | 300/1000 | 10D/20D |
JET 14~24 | 14~24 | 4.6±0.3 | 15 | 60/150 | 300/1000 | 10D/20D |
JET 26~36 | 26~36 | 5.1±0.3 | 18 | 60/150 | 300/1000 | 10D/20D |
JET 38~48 | 38~48 | 5.6±0.3 | 22 | 60/150 | 300/1000 | 10D/20D |
