·Description

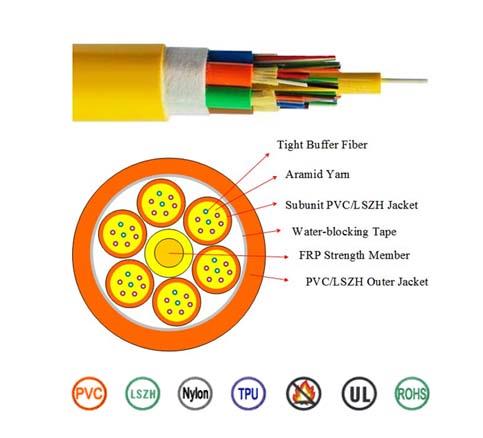

24~144 fiber, Stranded structure, FRP strength member, 24--144 -fiber subunit (Φ900μm Tight buffer, Aramid yarn), PVC Jacket.
·Standards
Comply with Standard YD/T 1258.4-2005, ICEA-596, GR-409, IEC794, etc; and meet the requirements of UL approval for OFNR.
·Cable Code
BOC-24 | BOC-48 | BOC-72 | BOC-96 | BOC-120 | BOC-144 | |
Cable Diameter (mm) | 13.8±0.5 | 17±0.5 | 20.5±0.5 | 24±0.5 | 28±0.5 | 36±0.5 |
Cable Weight (kg/km) | 140 | 220 | 338 | 490 | 668 | 870 |
TBF Diameter | 900±50μm | |||||
Tensile Strength | Long term | 400N |
Short term | 1300N | |
Crush Resistance | Long term | 300N/100mm |
Short term | 1000N/100mm | |
Bending Radius | Dynamic | 20×D （ Cable Diameter） |
Static | 10×D （ Cable Diameter） |
| 50/125μm | 62.5/125μm | G.652 | G.655 | ||
Attenuation(+20℃) | @850nm | ≤3.5dB/km | ≤3.5dB/km |
|
| |
@1300nm | ≤1.5dB/km | ≤1.5dB/km |
|
| ||
@1310nm |
|
| ≤0.45dB/km | ≤0.50dB/km | ||
@1550nm |
|
| ≤0.30dB/km | ≤0.50dB/km | ||
Bandwidth (Class A) | @850nm | ≥500MHz·km | ≥200MHz·km |
|
| |
@1300nm | ≥1000MHz·km | ≥600MHz·km |
|
| ||
Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA |
|
| ||
Cable Cut-off Wavelength λcc |
|
| ≤1260nm | ≤1480nm | ||
Attenuation at temperature cycling Δα(-20℃~+85℃) | @1300nm | ≤0.50dB/km | ≤0.50dB/km |
|
| |
@1550nm |
|
| ≤0.20dB/km | ≤0.20dB/km | ||
Transport Temperature | -20℃~+60℃ |
Storage Temperature | -20℃~+60℃ |
Installation Temperature | -5℃~+50℃ |
Operating Temperature | -20℃~+60℃ |
