·Description

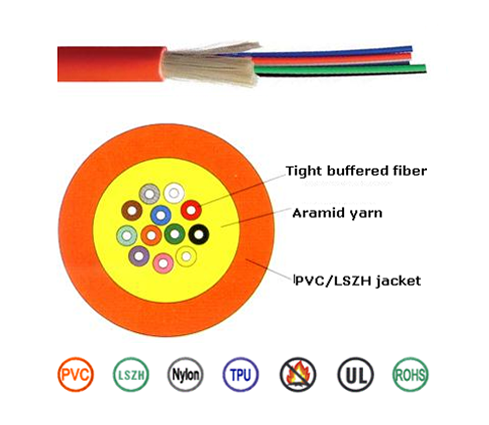

02~12 fiber, Φ900μm Tight buffer fiber, Aramid yarn, PVC Jacket.
·Standards
Comply with Standard YD/T 1258.4-2005, ICEA-596, GR-409, IEC794, etc; and meet the requirements of UL approval for OFNR.
·Cable Code
| MPC-04 | MPC-06 | MPC-08 | MPC-10 | MPC-12 | |
Cable Diameter (mm) | 4.1±0.25 | 4.8±0.25 | 5.1±0.25 | 5.6±0.25 | 5.8±0.25 | 6.2±0.25 |
Cable Weight (kg/km) | 11.0 | 18.4 | 22 | 24 | 27 | 31 |
TBF Diameter | 900±50μm | |||||
Tensile Strength | Long term | 200N |
Short term | 660N | |
Crush Resistance | Long term | 300N/100mm |
Short term | 1000N/100mm | |
Bending Radius | Dynamic | 20×D （Cable Diameter） |
Static | 10×D （Cable Diameter） |
| 50/125μm | 62.5/125μm | G.652 | G.655 | |
Attenuation(+20℃) | @850nm | ≤3.5dB/km | ≤3.5dB/km |
|
|
@1300nm | ≤1.5dB/km | ≤1.5dB/km |
|
| |
@1310nm |
|
| ≤0.45dB/km | ≤0.50dB/km | |
@1550nm |
|
| ≤0.30dB/km | ≤0.50dB/km | |
Bandwidth (Class A) | @850nm | ≥500MHz·km | ≥200MHz·km |
|
|
@1300nm | ≥1000MHz·km | ≥600MHz·km |
|
| |
Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA |
|
| |
Cable Cut-off Wavelength λcc |
|
| ≤1260nm | ≤1480nm | |
Attenuation at temperature cycling Δα(-20℃~+85℃) | @1300nm | ≤0.25dB/km | ≤0.25dB/km |
|
|
@1550nm |
|
| ≤0.10dB/km | ≤0.15dB/km | |
Transport Temperature | -20℃~+60℃ |
Storage Temperature | -20℃~+60℃ |
Installation Temperature | -5℃~+50℃ |
Operating Temperature | -20℃~+60℃ |
