·Description

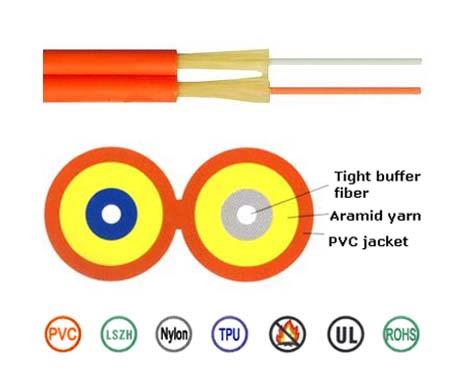

2 fiber, Figure 8 structure, Φ900μm or Φ600μm Tight buffer fiber, Aramid yarn, PVC Jacket.
·Standards
omply with Standard YD/T 1258.3-2003, ICEA-596, GR-409, IEC794, etc; and meet the requirements of UL approval for OFNR and OFNP.
·Cable Code
| ZCC-II | ZCC-I | |
Cable Diameter (mm) | (6.0±0.4)×(2.8±0.2) | (4.2±0.4)×(2.0±0.2) | (3.4±0.4)×(1.6±0.2) |
Cable Weight (kg/km) | 15.6 | 10.5 | 7.3 |
TBF Diameter | 900±50μm | 900±50μm | 600±50μm |
Tensile Strength | Long term | 100N | 100N |
|
Short term | 200N | 200N |
| |
Crush Resistance | Long term | 200N/100mm | 100N/100mm |
|
Short term | 1000N/100mm | 500N/100mm |
| |
Bending Radius | Dynamic | 20×H （ Cable Axis） | ||
Static | 10×H （ Cable Axis） | |||
| 50/125μm | 62.5/125μm | G.652 | G.655 | |
Attenuation(+20℃) | @850nm | ≤3.5dB/km | ≤3.5dB/km |
|
|
@1300nm | ≤1.5dB/km | ≤1.5dB/km |
|
| |
@1310nm |
|
| ≤0.45dB/km | ≤0.50dB/km | |
@1550nm |
|
| ≤0.30dB/km | ≤0.50dB/km | |
Bandwidth (Class A) | @850nm | ≥500MHz·km | ≥200MHz·km |
|
|
@1300nm | ≥1000MHz·km | ≥600MHz·km |
|
| |
Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA |
|
| |
Cable Cut-off Wavelength λcc |
|
| ≤1260nm | ≤1480nm | |
Attenuation at temperature cycling Δα(-20℃~+85℃) | @1300nm | ≤0.25dB/km | ≤0.25dB/km |
|
|
@1550nm |
|
| ≤0.10dB/km | ≤0.15dB/km | |
Transport Temperature | -20℃~+60℃ |
Storage Temperature | -20℃~+60℃ |
Installation Temperature | -5℃~+50℃ |
Operating Temperature | -20℃~+60℃ |
