·Description

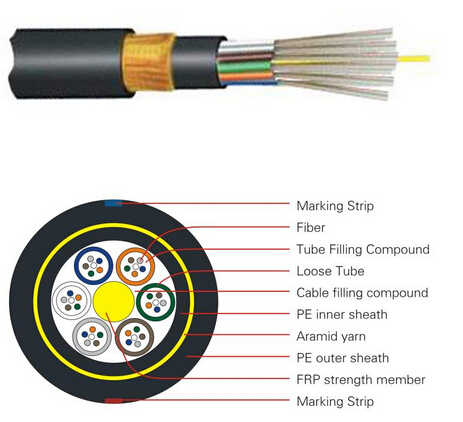

   The fibers,  250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with filling compound, it is covered with thin PE (polyethylene) inner sheath. Then, a layer of aramid yarn is applied as additional strength member and the cable is completed with a polyethylene (PE) outer sheath.

·Characteristics

       · Good mechanical and temperature performance

       · Aramid yarn strength member ensures good performance of tensile strength

       · High strength loose tube that is hydrolysis resistant

       · Special tube filling compound ensure a critical protection of fiber

       · Crush resistance and flexibility

       · The following measures are taken to ensure the cable watertight:

       · Single Fiber Reinforced Plastic as the central strength member

       · Loose tube filling compound

       · 100% cable core filling

·Standards

      GYHTY cable complies with Standard YD/T 901-2001as well as IEC 60794-1.

·Optical Characteristics
